OUTLINE
Outline
| Location | Ishikari City, Hokkaido Prefecture |
|---|---|
| Gross site area | 14,215 m2 |
| Planned completion | March 2026 |
| Structure and number of stories | Steel-framed, 3-story building with earthquake-resistant structure |
| Total floor area | 10,090 m2 |
| Number of data halls | 6 data halls |
| Rental space area | Approximately 570 m2 per data hall |
| Installable racks | Approximately 190 racks per data hall |
| Available power | Approximately 1,800 kW per data hall |
| Floor load | 1,500 kg/m2 (Within data hall) |
Specifications
| Substation equipment | Special high-voltage double-line power reception (main and backup lines) + RE100 power (private line) |
|---|---|
| Receiving voltage and power capacity | 66 kV / 15,000 kW |
| Private power generation equipment | Gas turbine generators in N+1 configuration |
| Oil-free operation time | 48 hours |
| Uninterruptible power supply (UPS) | N+2 configuration (common backup system) |
| Air-conditioning facilities | Indirect evaporative cooling |
| Telecommunications | Carrier neutral / multi-carrier (including mobile carriers) IOWN® (under consideration) Number of communication cable entry routes to site: 3 Number of MDF rooms within building: 3 |
CONCEPT

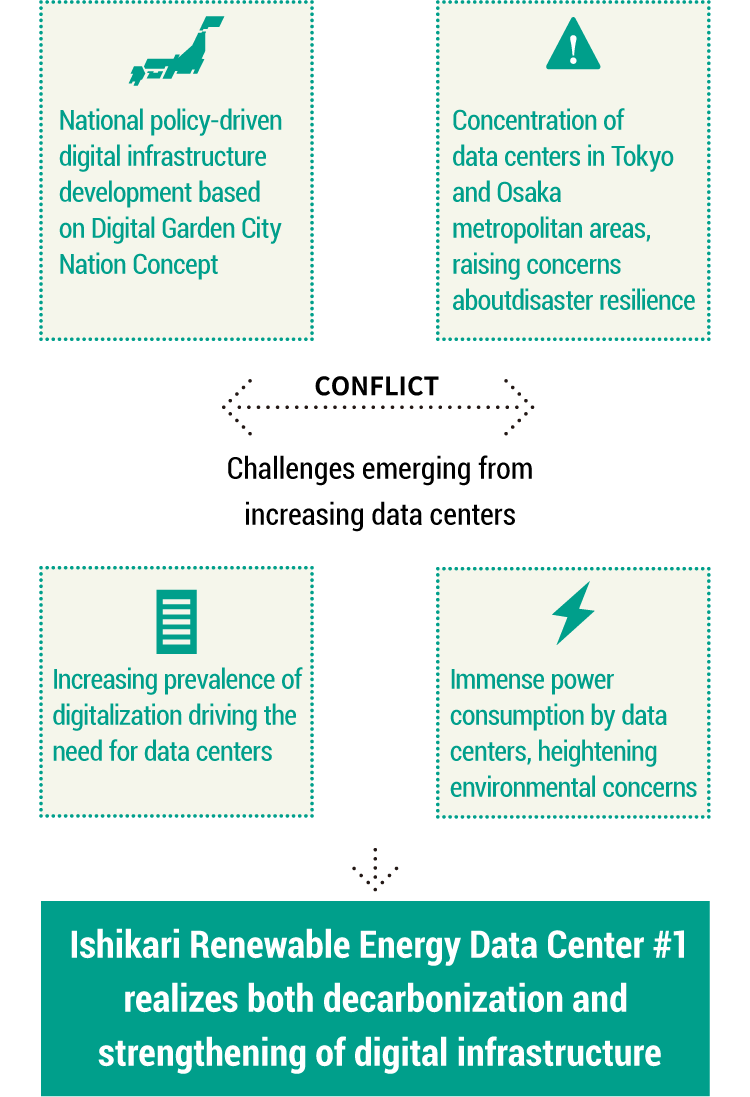

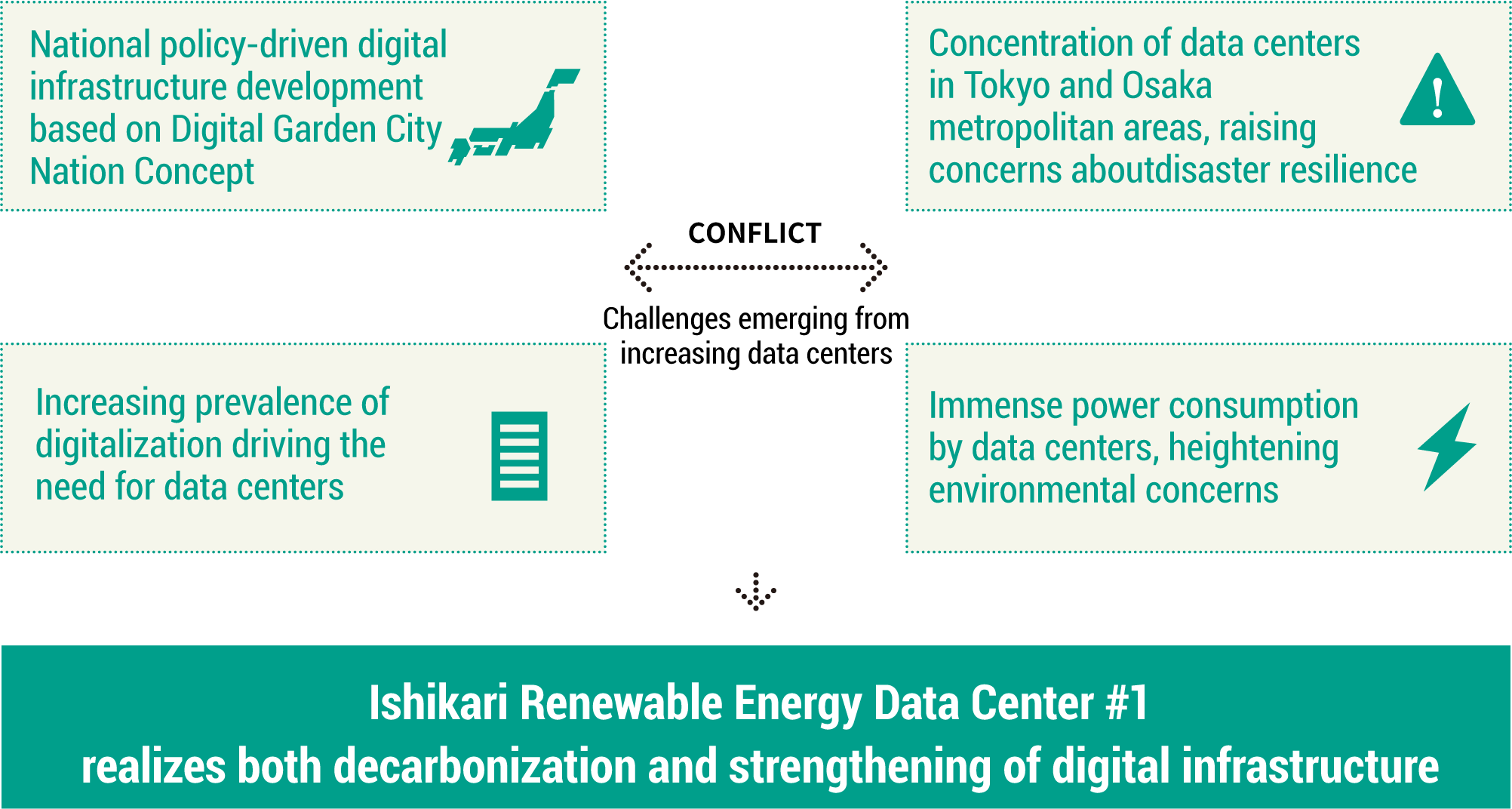

Pioneering the Future of Digital & Green Society: Next-Generation Data Center
Ishikari Renewable Energy Data Center #1 boldly resolves the complex challenges facing 」apanese data centers,
simultaneously achieving decarbonization and strengthening digital infrastructure.

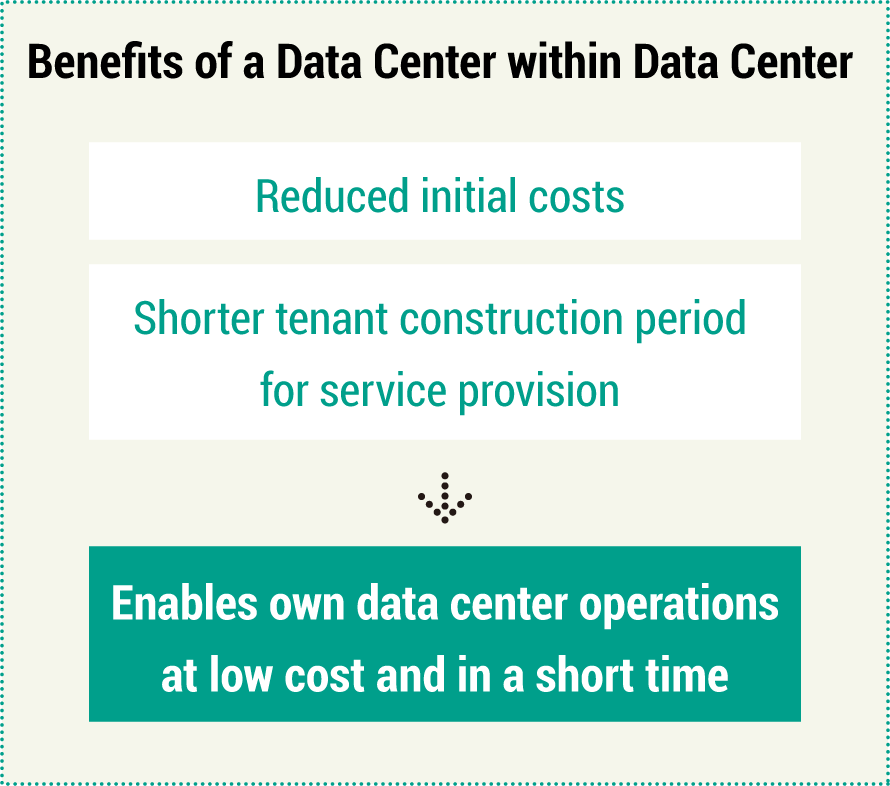

DC in DC
"Data Center within Data Center" housing multiple data center operators

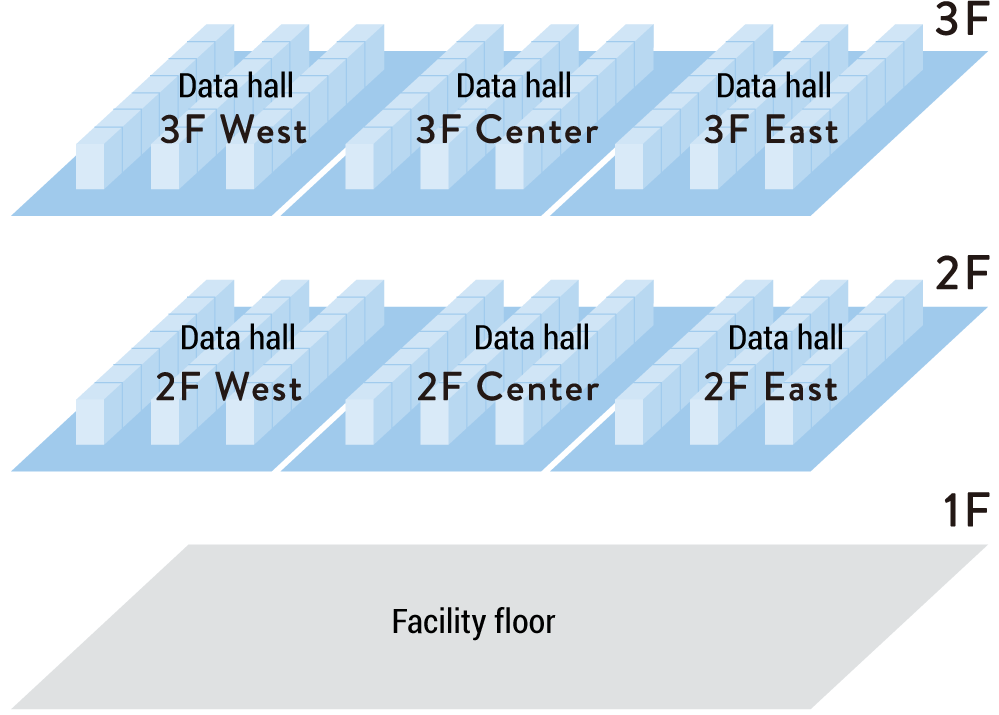

Each 2nd and 3rd floor are divided into three and six data halls in total, which will be utilized by multiple data center operators. As the building and large-scale equipment are already in place, tenants need only prepare the equipment within the data halls.

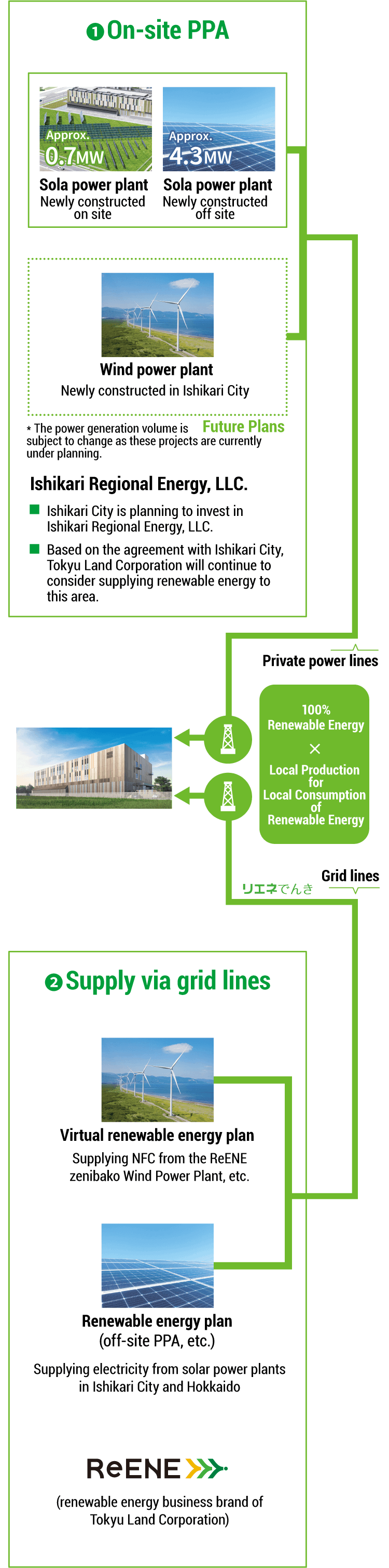

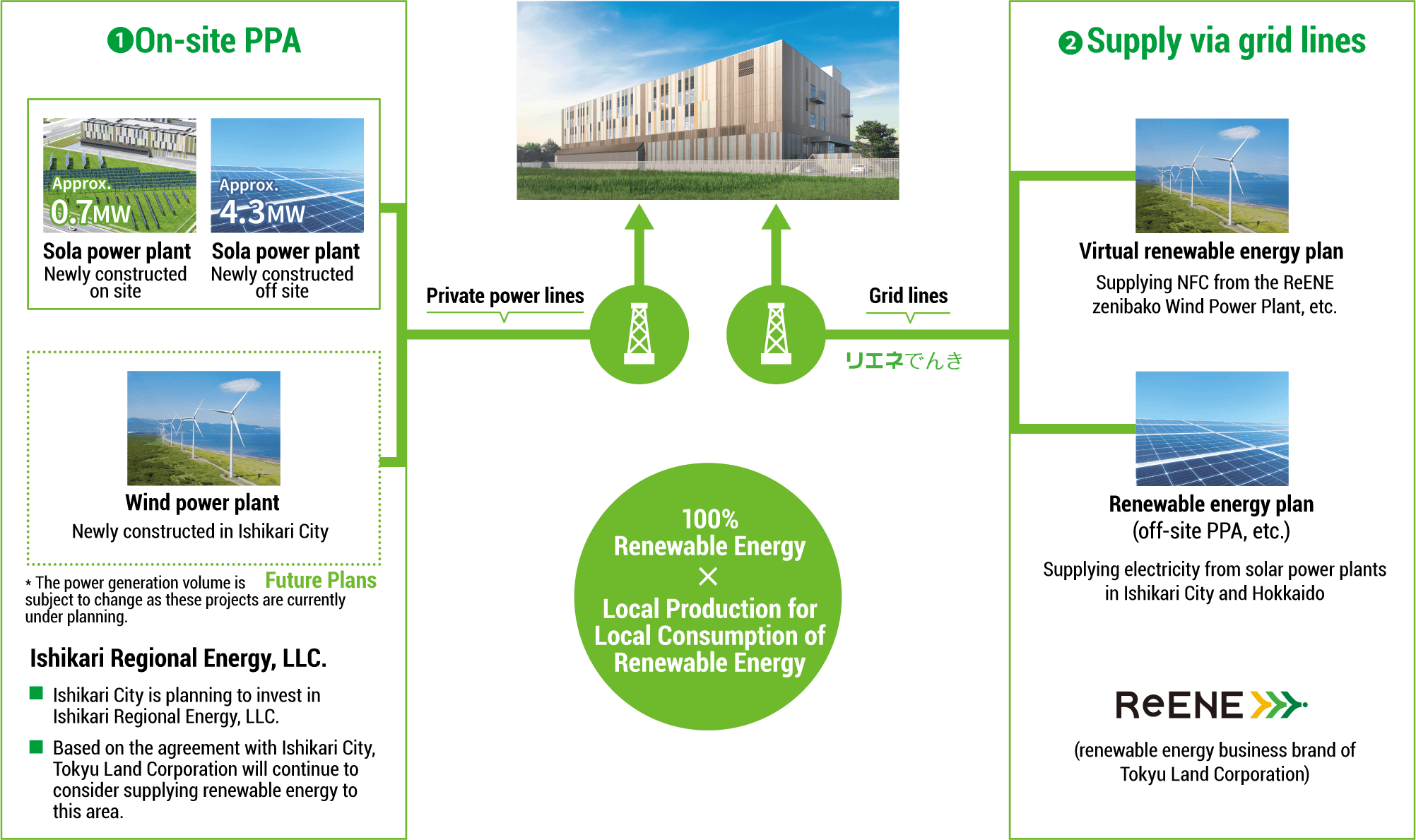

RENEWABLE ENERGY
Achieving 100% renewable energy operation with two types of power supply
Ishikari Renewable Energy Data Center #1 will be operated using 100% renewable energy,
primarily produced in Ishikari. The power used in the facility will be generated through on-site PPA*,
with any shortfall supplied by green energy procured by ReENE Co., Ltd (a group company of Tokyu Land Corporation)
* On-site PPA: a method of directly supplying power by connecting user facilities and power plants with private lines.
NETWORK
IOWN®
Ishikari Renewable Energy Data Center #1 will resolve various issues facing remote data centers by the
implementation of IOWN®, promoted by the NTT Group.
* IOWN® is a trademark or registered trademark of Nippon Telegraph and Telephone Corporation (NTT).
-
IOWN®: Aiming for Optical Connectivity from Networks to Devices
IOWN® is a next-generation communication infrastructure concept promoted by the NTT Group. By implementing cutting-edge technology known as the All-Photonics Network (APN), it enables end-to-end photonic transmission across the network, thereby realizing high-capacity, low-latency, and low-power-consumption data communication.
※APN：All-Photonics Network
-
Realizing high-capacity, low-latency, and low-power-consumption data communication
Optical connectivity between data centers and servers has already been completed. Going forward, the scope of optical application will be extended to the micro-level of the network. This initiative aims to achieve 100 times greater power efficiency, 125 times greater transmission capacity, and 1/200 of end-to-end latency.
-
Potential of remote data centers expanded through IOWN®
IOWN® will eliminate network latency between data centers located in remote areas and major cities such as Tokyo and Osaka, thereby enabling customers to build distributed and highly available server environments. In addition, by connecting small-scale data centers in regions like Hokkaido and Kyushu, where green power plants are concentrated, and promoting their utilization, it will promote the local generation and consumption of renewable energy.
